Abstract
Introduction

Hemodialysis wastewater contains high concentrations of ammonia nitrogen and phosphorus. Recovery of these nutrients as soil fertilizers represents an interesting opportunity to ensure a sustainable fertilizer supply.

Methods

In this paper, a simple method for recovering phosphorous and nitrogen as crystalline struvite [MgNH4PO4·6H2O] is presented. An integrated cost model is also presented in order to create a positive business case.

Results

Recovery rates in form of struvite of 95% of PO43−-P and 23% of NH4+-N were achieved with a profit.

Conclusion

To the best of our knowledge, this paper is the first to study the recovery of these naturally occurring minerals from hemodialysis wastewater. This offers great potential for the valorization of this type of wastewater.

Keywords:
Hemodialysis wastewater
Wastewater valorization
Phosphorus
Nitrogen
Eco-recycling
Struvite
Cost evaluation
Resumen
Introducción

El agua residual de la hemodiálisis contiene altas concentraciones de nitrógeno amoniacal y fósforo. La recuperación de dichos nutrientes como fertilizantes del suelo representa una oportunidad interesante para garantizar un suministro de fertilizantes sostenible.

Métodos

En este documento se presenta un método simple de recuperar fósforo y nitrógeno en forma de cristales de estruvita [MgNH4PO4·6H2O]. También se presenta un modelo de costes integrado para crear un caso de negocio positivo.

Resultados

Se lograron unas tasas de recuperación en forma de estruvita del 95% de PO4 3−-P y el 23% de NH4 +-N, con beneficio.

Conclusión

Según nuestros conocimientos, este documento es el primero que estudia la recuperación de estos minerales de origen natural del agua residual de la hemodiálisis, lo cual ofrece un gran potencial para la valorización de este tipo de aguas residuales.

Palabras clave:
Agua residual de la hemodiálisis
Valorización del agua residual
Fósforo
Nitrógeno
Eco-reciclado
Estruvita
Evaluación de costes
Full Text
Introduction

Hemodialysis consumes huge volumes of water and produce large quantities of wastewater containing many potential resources like organic matter, nitrogen, and phosphorus.1 Therefore, recovery and reuse of these nutrients as agricultural fertilizers is highly desirable.1,2 We have previously demonstrated that hemodialysis wastewater is a valuable resource that can provide fit-for-purpose water,3 energy,4 nutrients,1,2 and carbon emission savings.5

The discharge of wastewater in hemodialysis is high and could be estimated annually at approximately 98 million cubic meters over the world and 18 million cubic meters in United States.6,7 In our country, Morocco the discharge is estimated at 1 million cubic meters each year.6,7 In a world where demands for freshwater are ever growing, and where limited water resources are increasingly stressed by over-abstraction, pollution and climate change, neglecting the opportunities arising from improved wastewater management is nothing less than unthinkable.5,8,9

Hemodialysis wastewater which contains a high amount of phosphorus and nitrogen would be a good source of struvite (MgNH4PO4·6H2O – magnesium ammonium phosphate hexahydrate).10 This precipitate, due to its chemical characteristics, represents an effective alternative source of rock phosphate fertilizer for vegetables and plants growth.11 Nitrogen and phosphorus in wastewaters are also a burning environmental issue. Recovering these elements from wastewater can also help reducing the amount of phosphorus entering the environment and thus lowering the environmental impact.11

To the best of our knowledge, this paper is the first to study the recovery of this naturally occurring mineral from hemodialysis wastewater. This offers great potential for the valorization of this type of wastewater.

Materials and methodsSampling and analyses

Water samples were obtained from a single dialysis facility. Wastewater was collected from the outflow pipe that drains hemodialysis effluent (spent dialysate) directly into the municipal sewage line. Samples were stored at 4°C soon after sampling until used in struvite precipitation tests.

Samples were analyzed for the concentration of cations, anions, chemical oxygen demand (COD), ortho-phosphate (PO43−-P) and total ammonium nitrogen (NH4+-N). The cation concentrations were determined using an ICP-OES, type Perkin Elmer Optima 3000 DV (Waltham, Massachusetts, USA). The anion concentrations were determined using an ion chromatography system, type Metrohm IC Compact 761 (Schiedam, The Netherlands). NH4+-N was analyzed using test kit LCK 303. PO43−-P was analyzed using test kit LCK 348 and COD was analyzed using test kit LCK 314 (all Dr. Lange, HACH, Loveland, Colorado, USA) in a spectrophotometer HACH XION 500 (HACH, Loveland, Colorado, USA). The biological oxygen demand (BOD) was determined using the OxiTop® system (WTW, Germany) over a period of 5 days at 20°C.

Crystallizations experiments

A 5l laboratory-scale, single-cell electrochemical batch reactor was used for struvite production (Fig. 1). The pH and temperature values were monitored through online probes. In all experiments, magnesium chloride hexahydrate (MgCl2·6H2O) was added to meet a molar ratio [Mg2+: Ca2+>2] and [Mg2+: PO43−>1], which were selected based on data reported by Li et al.12 and Liu et al.13 who found struvite crystals with high purity and high phosphorus recovery when using these molar ratios. Crystallization was attained at electric current density of 55Am−2. The obtained struvite cake from the process was dried at room temperature to form a powder.

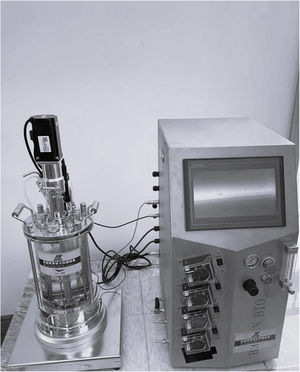

Fig. 1.

Experimental equipment for struvite crystallization.

(0.2MB).
Struvite precipitate characterization

The crystalline nature and the semi quantitative composition were determined by X-ray diffraction (XRD; Bruker D2 Phaser), using struvite standard X-ray diffraction patterns. Phosphorus precipitation in the crystallizer was assessed using “The percentage of precipitated phosphorus as struvite” (PMAP, %).

PMAP was calculated as the ratio of the number of precipitated mmoles of struvite (n(MAP)) (mmol), which was assumed to be the lowest value between the precipitated mmoles of Mg2+, PO43−-P and NH4+-N and the precipitated mmoles of PO43−-P in the solution, as shown in the equation below14:PMAP (%)=n (MAP)preciptitated(PO43−-P)preciptitated×100

ResultsCharacterization of hemodialysis wastewater

The characteristics of the wastewater are shown in Table 1; the average concentration of PO43−-P and NH4+-N was 13.2mgL−1 and 4.2mgL−1 respectively. The samples had an average pH of 7.53. The BOD was found to be approximately 8.13mgL−1, and the COD was 1053mgL−1.

Table 1.

Results of physico-chemical characterization of effluents from hemodialysis. The average was obtained from four different samples obtained on different days.

Composition  Average  Range
Temperature (°C)  23.5  22–25
pH  7.53  6.91–8.15
COD (mgL−11053  986–1120
BOD (mgL−18.13  7.98–8.28
NH4+-N (mgL−14.2  3.05–5.35
PO43−-P (mgL−113.2  12.32–14.08
Sodium (mgL−13289  3243.4–3334.6
Potassium (mgL−193.7  88–99.4
Magnesium (mgL−152.1  49.8–54.4
Calcium (mgL−186.2  81.9–90.5
Alkalinity (mgL−1 as CaCO31715  1667–1763

COD (chemical oxygen demand) is the amount of dissolved oxygen that must be present in water to oxidize chemical organic materials.

BOD (biochemical oxygen demand) is the amount of dissolved oxygen used by microorganisms in the biological process of metabolizing organic matter in water.

Evaluation of phosphorus and nitrogen recovery

Under optimal conditions, the removal efficiencies of PO43−-P and NH4+-N in struvite precipitation were analyzed as approximately 95% and 23%, respectively (Table 2). The phosphorus removal as struvite was similar at the three pH conditions evaluated (i.e., pH 8, 9 and 10). Although, the removal of NH4+-N increased as the pH value increased (Fig. 2). The nitrogen removal can be explained as a combination of the precipitation and volatilization processes, the latter favored under well-mixing conditions at higher pH levels.15 Temperature has a relatively less significant effect on struvite precipitation than the pH level. However, the temperature strongly influences the efficiency of phosphate removal.

Table 2.

Removal efficiency of phosphorus and nitrogen.

T (°C)  20  20  20  25  35  40
pH  10
Removal efficiency (%)
PO43−-P  91.5±0.2  92.6±0.1  91.9±0.3  97.5±0.2  98.6±0.0  98.2±0.1
NH4+-N  14.6±1.4  22.3±0.7  40.1±0.4  16.3±1.1  20.5±0.4  27.4±1.2
MAP precipitates
PMAP (%)  70.4±0.3  83.4±1.6  82.8±0.9  92.5±0.4  77.3±1.8  90.1±1.0
Mass (g)  3.9±0.0  3.7±0.1  4.2±0.1  4.4±0.0  4.1±0.2  4.1±0.1

PMAP: the percentage of phosphate as struvite.

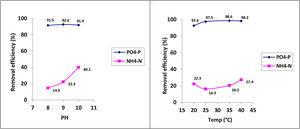

Fig. 2.

Effect of pH and temperature on phosphorus and nitrogen removal.

(0.19MB).
Precipitates formed in the crystallization process

The X-ray diffractogram obtained in the analysis of the solids precipitated shows a good correlation between the peaks of the diffractogram obtained for the solid collected in the reactor and the peak of the struvite pattern which confirms that the solid formed was mainly struvite. Phosphorus precipitation in the crystallizer was higher at a pH of 9 and 10 than at a pH of 8, and the mean PMAP was 82.8%.

Economic efficiency of struvite production

We did an estimate of the financial efficiency of struvite production based on a tailor-designed system for a medium sized dialysis facility working with 20 machines filled to capacity and 2shifts/day and generating approximately 3000l of wastewater (150l of waste dialysate is being generated during each dialysis session: assuming a DFR of 500ml/min, 120L of dialysate is produced during a typical 4H hemodialysis session+30L of water needed for chemical disinfection of the hemodialysis monitor5). The system was designed to produce struvite on a regular basis (2.4kg of struvite can be produced daily). The system consists of wastewater collection tank; a struvite reactor for struvite precipitation and a pilot scale rotating biological contactor (RBC) to treat a small fraction of the effluent from struvite production before disposing it to the environment (Table 3). Data on costs and benefits are shown in Table 4.

Table 3.

Operating parameters for economic evaluation of struvite production from hemodialysis wastewater.

Parameters  Results
Reactor size (l)  500
Cycles per day
Struvite recovery efficiency (%) (PO43−-P/NH4+-N)  90/20
Daily struvite production (kg)  2.44
Yearly struvite production (kg)  760
Molar Mg:P ratio  1.1
Yearly required MgSO4 (kg)16  45

Yearly required MgSO4 evaluation was performed according to the method by Agudosi et al.16

Table 4.

Estimating cost of nutrients recovery as struvite.

Operations parameters  Results
Equipment cost (USD)  1350
Wastewater storage tank: 3m3 (USD)  180
Additional costs (fittings, pipes, etc.) (USD)  80
Estimated total investment (USD)  1610
Required MgSO4 price (USD/kg)17  0.33
Operations costs (USD/year)  100.3
Maintenance costs (USD/year)  48
Operating duration (year)  10
Struvite market price (USD/kg)18  0.8
Annual cash inflow (USD)  608
Payback period (month)  42

Prices were calculated according to Refs. 16 and 17.

Discussion

Recognition that hemodialysis wastewater is an economic resource capable of supplying water,3 nutrients,1,2 energy4 and other valuable materials and services4,5 has become a major driving force to improve effective wastewater management.5 Each year, for instance, approximately 98 million cubic meters of hemodialysis wastewater are generated globally.6,7 Theoretically, the resources embedded in this wastewater would be enough to irrigate and fertilize hundreds of thousands of hectares of crops.

This effluent can also maintain considerable thermal energy quantities, which is discharged to the sewer system with temperature ranging from 20 to 25°C. It is estimated that 1698GWh per year of thermal energy is lost in sewers in dialysis units all over the world and 314GWh in the US (the specific thermal capacity of wastewater is: 1.16kWh/m3×K; the wastewater in the effluent will be cooled down to 5°C, so that 15K can be extracted).19

Globally, hemodialysis wastewater is estimated to contain enough energy to heat 141,500 homes (the average home requires around 12,000kWh of heat/year),20 with an annual fuel cost savings of 118 million Euros if recovered by using technologies like heat exchangers and reused to satisfy heating demands (12,000kWh heat demand/3kW heat production per unit of electricity=4000kWh of electricity. Average residential electricity price in Europe is 0.21 euros).21

Hemodialysis wastewater maintains good amount of carbon, nitrogen and phosphorus, of which have large impacts on the environment. Wastewater from hemodialysis can disrupt aquatic ecosystems with deleterious impacts on aquatic biodiversity, landscapes and recreational opportunities.22 Recovery of nutrients from wastewater can alleviate major environmental problems related to nutrient pollution in ground and surface water sources.21 In this pilot study, recovery rates of 95% of PO43−-P and 23% of NH4+-N were achieved.

Application of struvite in the agricultural sector promises to be a profitable investment. It has been demonstrated that generating 1kg of struvite per day is enough to fertilize 2.6ha of arable land by applying phosphorus (as P2O5) at a rate of 40kg/ha year.20 In this study we were able to demonstrate that an hemodialysis facility with 20 chairs and 2shifts/day could generate approximately 2.4kg of struvite per working day with a profit, and a possibility to fertilize 5.2ha of arable land (estimation based on 6 working days/week). Regarding the environmental cost, the use of wastewater in lieu of synthetic fertilizers can results in an important carbon emissions saving. De Vries et al., have estimated that the use of struvite as fertilizer can results in saving of −0.35kg CO2 eq.kg−1 of struvite.23

Conclusion

The recovery of phosphorus and nitrogen from wastewater is a model for sustainable innovation in hemodialysis. Removing nutrients from where they should not be and using them to create a new generation of enhanced-efficiency fertilizer is the smart thing to do economically and the right thing to do environmentally.

Conflict of interests

The authors declare they have no conflict of interest.

References
[1]
F. Tarrass, M. Benjelloun, O. Benjelloun.
Recycling wastewater after hemodialysis: an environmental analysis for alternative water sources in arid regions.
Am J Kidney Dis, 52 (2008), pp. 154-158
[2]
F. Tarrass.
Research needs: treatment of hemodialysis wastewater for agricultural reuse.
Water Environ Res, 82 (2010), pp. 291-293
[3]
F. Tarrass, M. Benjelloun, O. Benjelloun, T. Bensaha.
Water conservation: an emerging but vital issue in hemodialysis therapy.
Blood Purif, 30 (2010), pp. 181-185
[4]
F. Tarrass, M. Benjelloun, O. Benjelloun.
Power from the sewer: renewable generation of electricity from hemodialysis effluent water.
Nephrol Dial Transplant, 35 (2020), pp. 722-723
[5]
F. Tarrass, M. Benjelloun, O. Benjelloun.
Towards zero liquid discharge in hemodialysis. Possible issues.
Nefrologia, 41 (2021), pp. 620-624
[6]
F. Tarrass.
Environmental constraints of hemodialysis: the case of Morocco.
Arab Hosp Magaz, 162 (2020), pp. 112
[7]
F. Tarrass.
Reducing water expenditure in hemodialysis.
Presentation, XXXI Brazilian congress of nephrology,
[8]
F. Tarrass, M. Benjelloun.
The effects of water shortages on health and human development.
Perspect Public Health, 132 (2012), pp. 240-244
[9]
M. Burnier, D. Fouque.
Global warming applied to dialysis: facts and figures.
Nephrol Dial Transplant, 36 (2021), pp. 2167-2169
[10]
S. Sengupta, T. Nawaz, J. Beaudry.
Nitrogen and phosphorus recovery from wastewater.
Curr Pollution Rep, 1 (2015), pp. 155-166
[11]
M.M. Rahman, M.A.M. Salleh, U. Rashid, A. Ahsan, M.M. Hossain, C.S. Ra.
Production of slow release crystal fertilizer from wastewaters through struvite crystallization – a review.
Arab J Chem, 7 (2014), pp. 139-155
[12]
B. Li, I. Boiarkina, B. Young, W. Yu.
Quantification and mitigation of the negative impact of calcium on struvite purity.
Adv Powder Technol, 27 (2016), pp. 2354-2362
[13]
Z. Liu, Q. Zhao, D. Lee, N. Yang.
Enhancing phosphorus recovery by a new internal recycle seeding MAP reactor.
Bioresour Technol, 99 (2008), pp. 6488-6493
[14]
A. Capdevielle, E. Sýkorová, B. Biscans, F. Béline, M.L. Daumer.
Optimization of struvite precipitation in synthetic biologically treated swine wastewater – determination of the optimal process parameters.
J Hazard Mater, 244–245 (2013), pp. 357-369
[15]
S. Rahimi, O. Modin, I. Mijakovica.
Technologies for biological removal and recovery of nitrogen from wastewater.
Biotechnol Adv, 43 (2020), pp. 107570
[16]
E.S. Agudosi, M.A. Salleh, H.I. Faudzi.
Phosphorus and nitrogen recovery from animal wastewater by the means of the struvite process for agricultural development.
J Environ Eng Sci, 3 (2017), pp. 231-245
[17]
Magnesium sulfate price by 12/2021. https://exportv.ru/price-index/magnesium-sulfate.
[18]
R. Quinne.
DTN retail fertilizer trends: MAP fertilizer price hits $800 per ton as retail prices spike.
(2021),
[19]
G. Neugebauer, F. Kretschmer, R. Kollmann, M. Narodoslawsky, T. Ertl, G. Stoeglehner.
Mapping thermal energy resource potentials from wastewater treatment plants.
Sustainability, 7 (2015), pp. 12988-13010
[20]
R. Renaldi, D. Friedrich.
Techno-economic analysis of a solar district heating system with seasonal thermal storage in the UK.
Appl Energy, 236 (2019), pp. 388-400
[21]
Storm Report. Electricity prices in Europe – who pays the most? https://strom-report.de/electricity-prices europe/.
[22]
C.K. Machado, L.H. Pinto, L.F. Del Ciampo, L. Lorenzi, C.H. Correia, D.P. Häder, et al.
Potential environmental toxicity from hemodialysis effluent.
Ecotoxicol Environ Saf, 102 (2014), pp. 42-47
[23]
S. de Vries, R. Postma, L. van Scholl, M. Blom-Zandstra, A. Verhagen, I. Harms.
Economic feasibility and climate benefits of using struvite from the Netherlands as a phosphate (P) fertilizer in West Africa.
Wageningen Plant Research report; No. 673, http://dx.doi.org/10.18174/417821
Copyright © 2023. Sociedad Española de Nefrología
